Item# : EA948DD-83

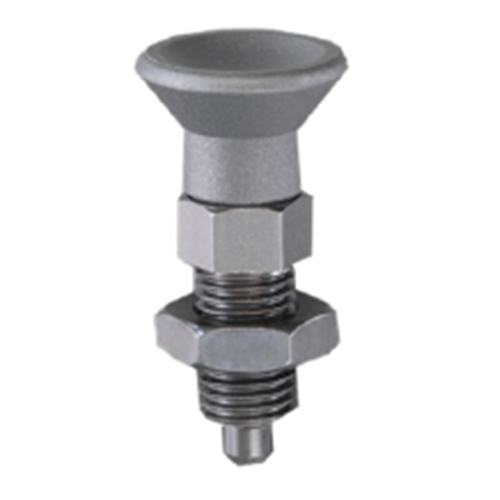

Description : Index Plunger [Double Nut]

Spec

Material-Body: steel (SUM22L)，Knob: polyamide，Nose: steel (SUM22L)

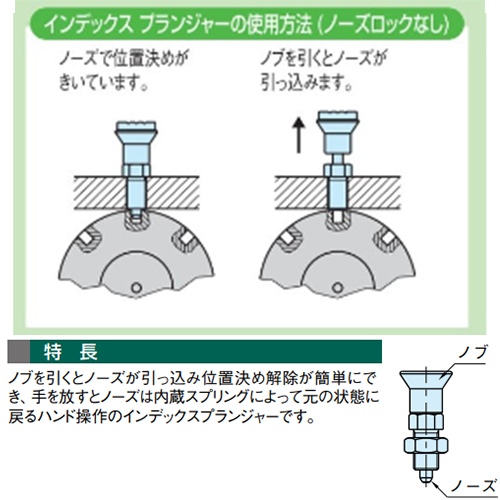

The nose lock type， -91 to -95， can be secured with the nose withdrawn by pulling up the knob and turning it 90°.
Heat-proof temperature-80℃
A 6
 B M12
C 25
 D 51.7
K 19
Additional explanation
Catalog Price (JPY)

¥ 1,740 （Excluding tax）／¥ 1,914（Tax including）

Quantity of stock

Latest stock：7

（2025/11/30 07:09 Currently）

Update
Catalog Page Page 1261
