Product Detail

Item# : EA948DD-84

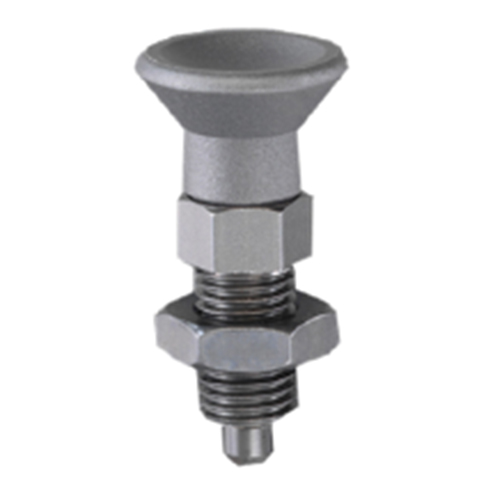

Description : Index Plunger [Double Nut]

Spec

Material-Body: steel (SUM22L)，Knob: polyamide，Nose: steel (SUM22L)

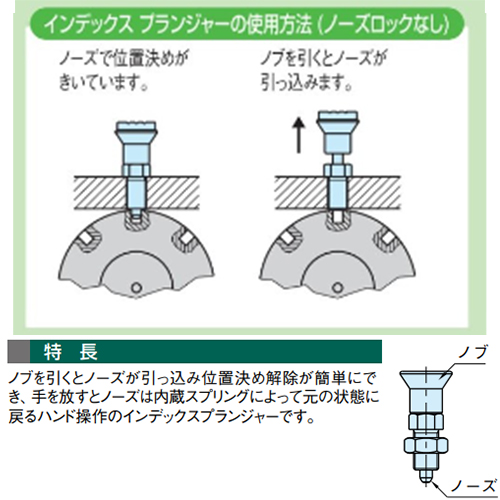

The nose lock type， -91 to -95， can be secured with the nose withdrawn by pulling up the knob and turning it 90°.
Heat-proof temperature-80℃
A	8	B	M16
C	33	D	68
K	24

Additional explanation

Catalog Price (JPY)	¥ 2,550 （Excluding tax）／¥ 2,805（Tax including）
Quantity of stock	Latest stock：1 （2025/05/10 03:55 Currently）
Catalog Page	Page 1261

Relational Items
EA948DD-81 Index Plunger [Double Nut]
EA948DD-82 Index Plunger [Double Nut]
EA948DD-83 Index Plunger [Double Nut]
EA948DD-84 Index Plunger [Double Nut]
EA948DD-85 Index Plunger [Double Nut]
EA948DD-91 Index Plunger [Nose Lock]
EA948DD-92 Index Plunger [Nose Lock]
EA948DD-93 Index Plunger [Nose Lock]
EA948DD-94 Index Plunger [Nose Lock]
EA948DD-95 Index Plunger [Nose Lock]
