Product Detail

Item# : EA948DD-91

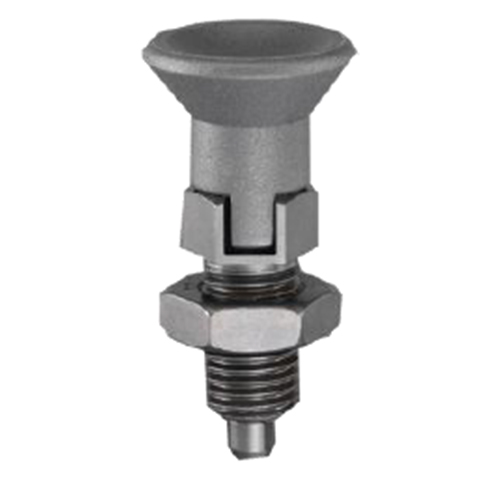

Description : Index Plunger [Nose Lock]

Spec

Material-Body: steel (SUM22L)，Knob: polyamide，Nose: steel (SUM22L)

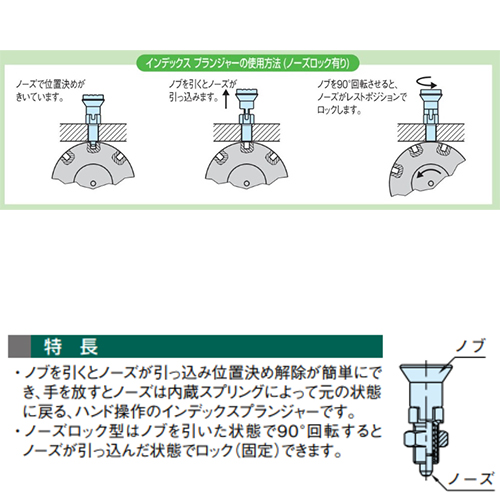

The nose lock type， -91 to -95， can be secured with the nose withdrawn by pulling up the knob and turning it 90°.
Heat-proof temperature-80℃
Nose lock	Included	A	4
B	M8	C	18
D	38.5	K	13

Additional explanation

Catalog Price (JPY)	¥ 2,030 （Excluding tax）／¥ 2,233（Tax including）
Quantity of stock	Latest stock：2 （2025/05/10 03:37 Currently）
Catalog Page	Page 1261

Relational Items
EA948DD-81 Index Plunger [Double Nut]
EA948DD-82 Index Plunger [Double Nut]
EA948DD-83 Index Plunger [Double Nut]
EA948DD-84 Index Plunger [Double Nut]
EA948DD-85 Index Plunger [Double Nut]
EA948DD-91 Index Plunger [Nose Lock]
EA948DD-92 Index Plunger [Nose Lock]
EA948DD-93 Index Plunger [Nose Lock]
EA948DD-94 Index Plunger [Nose Lock]
EA948DD-95 Index Plunger [Nose Lock]

Web catalog image

Prev
Next

Documents

Specification

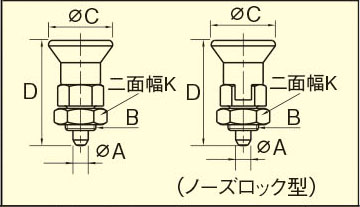

ESCO dimentional drawing

Note : Please read it before having you purchase item.

＜About item＞
Esco label with bar code is put on the handling pruducts (Excluding part of direct product from manufacture). A product becomes the change of specifications and the abolished turn without a notice by model change and improvement circumstances.
＜About size＞
The value of indication includes an error.Please select with margin.
＜About color＞
About the color of the publication product, it is a little different from a real color.
＜About an expense of heavy product＞
It is requested about assembling, insrallation and installation separately.
