Item# : EA948DD-85

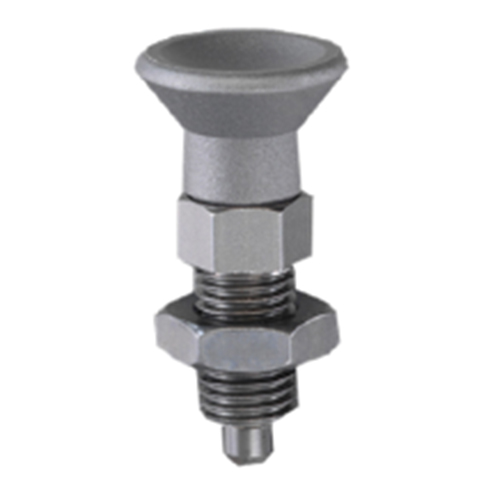

Description : Index Plunger [Double Nut]

Spec

Material-Body: steel (SUM22L)，Knob: polyamide，Nose: steel (SUM22L)

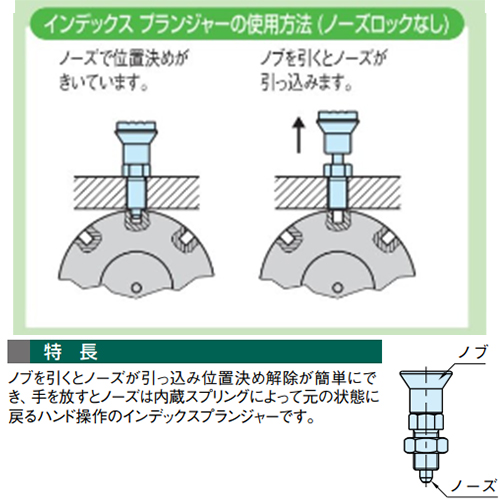

The nose lock type， -91 to -95， can be secured with the nose withdrawn by pulling up the knob and turning it 90°.
Heat-proof temperature-80℃
A 10
 B M20
C 33
 D 74
K 30
Additional explanation
Catalog Price (JPY)

¥ 3,530 （Excluding tax）／¥ 3,883（Tax including）

Quantity of stock

Latest stock：5

（2025/10/31 22:56 Currently）

Update
Catalog Page Page 1261
