Item# : EA948DD-94

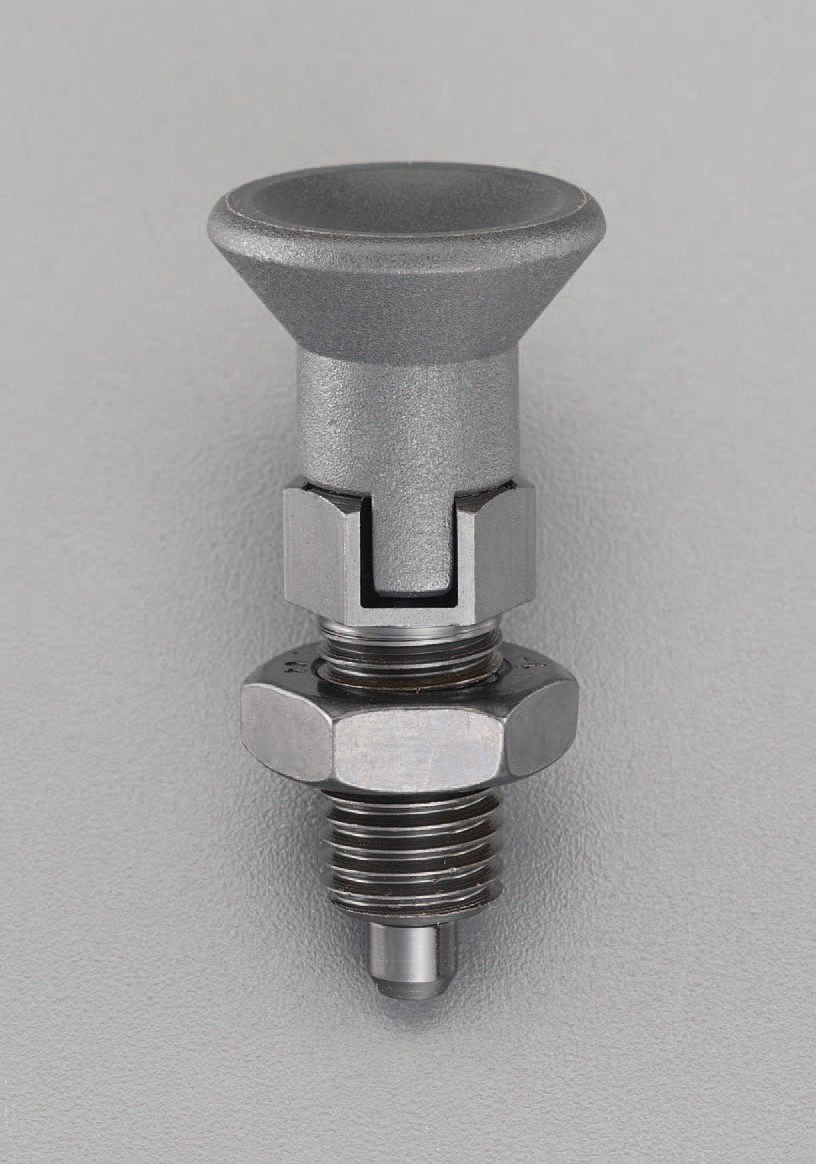

Description : Index Plunger [Nose Lock]

Spec

Material-Body: steel (SUM22L)，Knob: polyamide，Nose: steel (SUM22L)
The nose lock type， -91 to -95， can be secured with the nose withdrawn by pulling up the knob and turning it 90°.
Heat-proof temperature-80℃
Nose lock Included
 A 8
B M16
 C 33
D 68
 K 24
Additional explanation
Catalog Price (JPY)

¥ 2,800 （Excluding tax）／¥ 3,080（Tax including）

Quantity of stock

Latest stock：3

（2025/11/30 07:12 Currently）

Update
Catalog Page Page 1261
Relational Items
EA948DD-81 Index Plunger [Double Nut]
EA948DD-82 Index Plunger [Double Nut]
EA948DD-83 Index Plunger [Double Nut]
EA948DD-84 Index Plunger [Double Nut]
EA948DD-85 Index Plunger [Double Nut]
EA948DD-91 Index Plunger [Nose Lock]
EA948DD-92 Index Plunger [Nose Lock]
EA948DD-93 Index Plunger [Nose Lock]
EA948DD-94 Index Plunger [Nose Lock]
EA948DD-95 Index Plunger [Nose Lock]
Web catalog image
Expanding
  • Prev
  • Next

Documents

Specification
  1. PDF

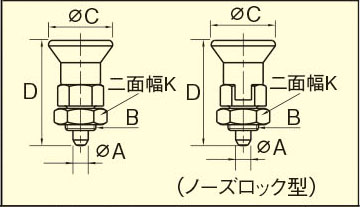

ESCO dimentional drawing
