Item# : EA948DD-95

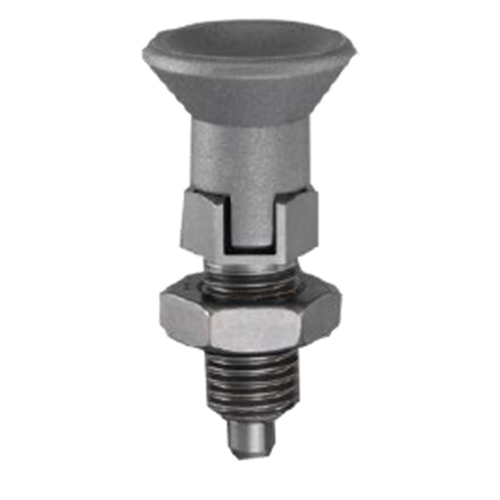

Description : Index Plunger [Nose Lock]

Spec

Material-Body: steel (SUM22L)，Knob: polyamide，Nose: steel (SUM22L)

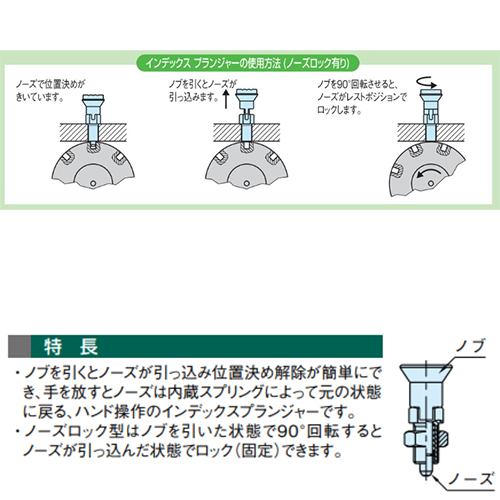

The nose lock type， -91 to -95， can be secured with the nose withdrawn by pulling up the knob and turning it 90°.
Heat-proof temperature-80℃
Nose lock Included
 A 10
B M20
 C 33
D 74
 K 30
Additional explanation
Catalog Price (JPY)

¥ 4,260 （Excluding tax）／¥ 4,686（Tax including）

Quantity of stock

Latest stock：8

（2025/11/30 07:14 Currently）

Update
Catalog Page Page 1261
