Item# : EA948DD-93

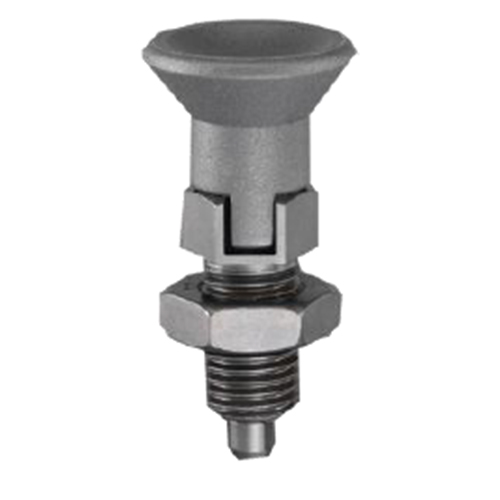

Description : Index Plunger [Nose Lock]

Spec

Material-Body: steel (SUM22L)，Knob: polyamide，Nose: steel (SUM22L)

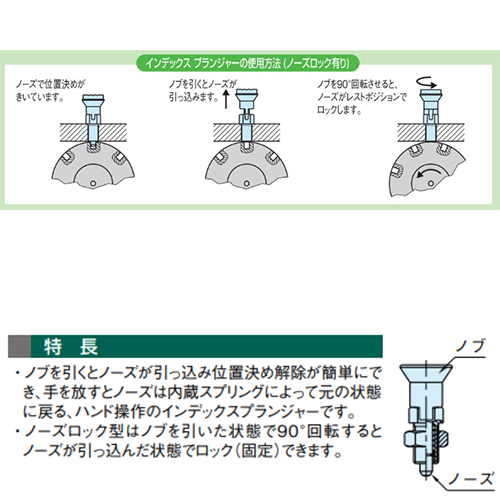

The nose lock type， -91 to -95， can be secured with the nose withdrawn by pulling up the knob and turning it 90°.
Heat-proof temperature-80℃
Nose lock Included
 A 6
B M12
 C 25
D 51.7
 K 19
Additional explanation
Catalog Price (JPY)

¥ 2,180 （Excluding tax）／¥ 2,398（Tax including）

Quantity of stock

Latest stock：2

（2025/10/31 22:34 Currently）

Update
Catalog Page Page 1261
