Item# : EA969GA-3

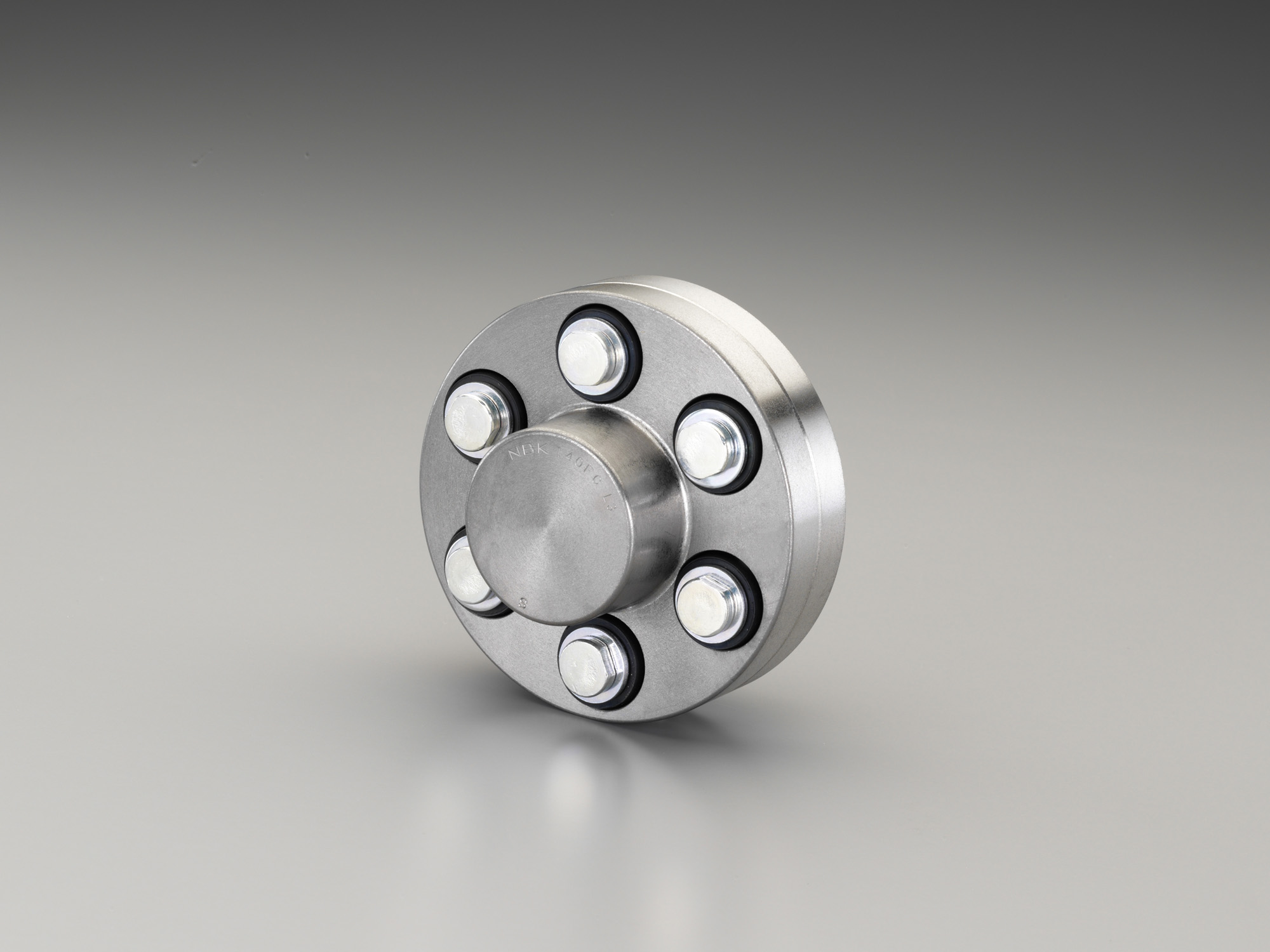

Description : Flexible Flanged Shaft Coupling

Spec

Material-Cast iron
JISB1452-1991
Easy maintenance and service since you just need to remove the joint bolt to replace the bush.
Size(mm) Dia.(A)：112、
bush hole Dia.(M)：23、
bolt hole Dia.(a)：10、
B：75、
C1：50、C2：50、
D1：28、D2：28、
F1：16、F2：16、
L：40
It is a shaft hole unprocessed product.
Additional explanation
Catalog Price (JPY)

¥ 9,250 （Excluding tax）／¥ 10,175（Tax including）

Quantity of stock

Latest stock：1

（2025/05/02 17:52 Currently）

Update
Catalog Page Page 1269
Relational Items
EA969GA-1 Flexible Flanged Shaft Coupling
EA969GA-2 Flexible Flanged Shaft Coupling
EA969GA-3 Flexible Flanged Shaft Coupling
EA969GA-4 Flexible Flanged Shaft Coupling
EA969GA-5 Flexible Flanged Shaft Coupling
EA969GA-6 Flexible Flanged Shaft Coupling
EA969GA-7 Flexible Flanged Shaft Coupling
EA969GA-8 Flexible Flanged Shaft Coupling
EA969GA-9 Flexible Flanged Shaft Coupling
Web catalog image
Expanding
  • Prev
  • Next

Documents

Catalog
  1. PDF

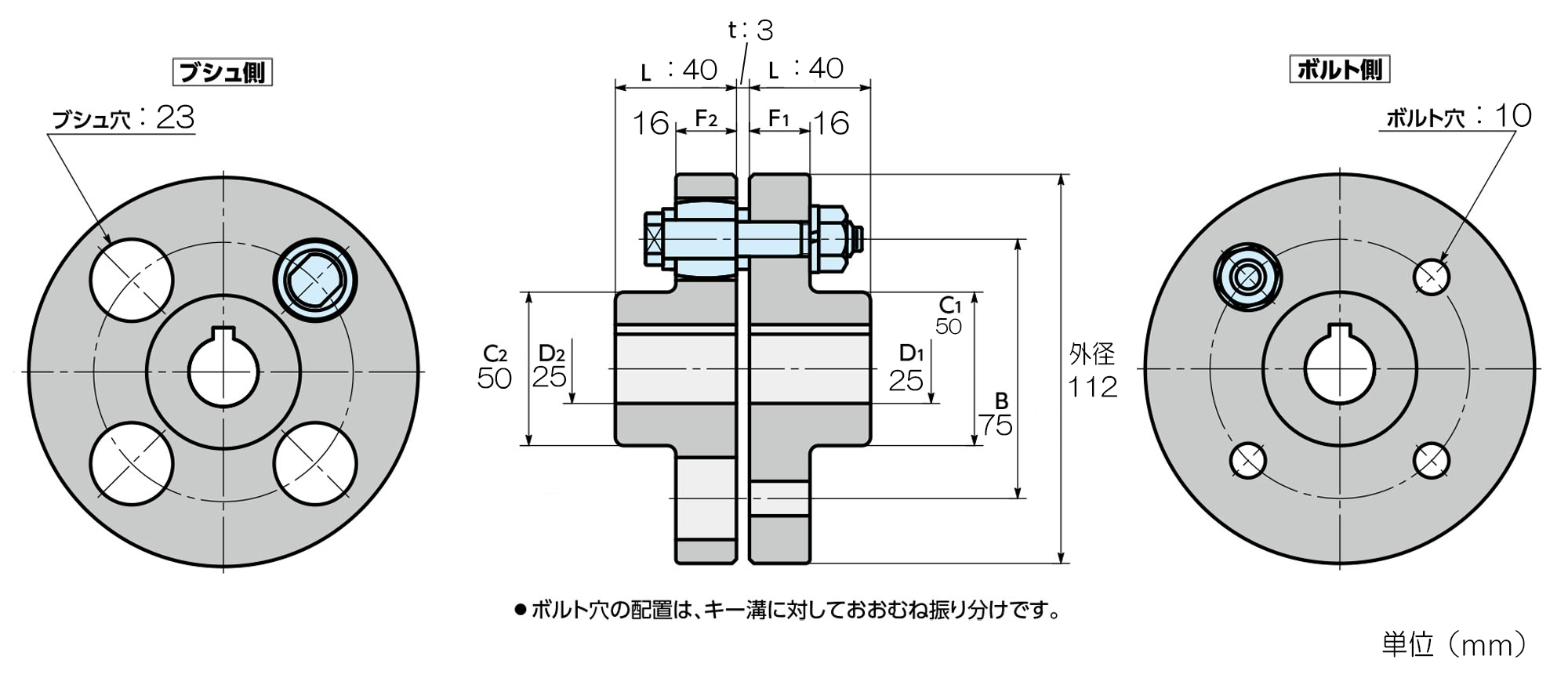

ESCO dimentional drawing
